POSTGRADUATE ORTHOPEDIC INSTRUCTION - IMAGING

Case Resolution

Fabián Caruso, Natalia Promizio, Diego Korol

Orthopedics and Traumatology Service, Hospital Interzonal General de Agudos “Eva Perón”, San Martín, Buenos Aires, Argentina

Case Presentation on page 408.

Synovial Chondromatosis of the Knee

ABSTRACT

Imaging studies showed intra-articular loose bodies, suggesting synovial chondromatosis. This rare, benign condition is characterized by the formation of cartilaginous loose bodies within the joint as a result of metaplasia of the synovial membrane.

Keywords: Chondromatosis; synovial tissue; cartilage.

Level of Evidence: IV

Condromatosis sinovial de rodilla

RESUMEN

Los estudios por imágenes mostraron cuerpos libres intrarticulares, esto sugiere condromatosis sinovial. Se trata de un cuadro raro y benigno caracterizado por la formación de cuerpos libres cartilaginosos intrarticulares, producto de una metaplasia de la membrana sinovial.

Palabras clave: Condromatosis, tejido sinovial, cartílago.

Nivel de Evidencia: IV

DIAGNOSIS: Synovial chondromatosis of the knee.

DISCUSSION

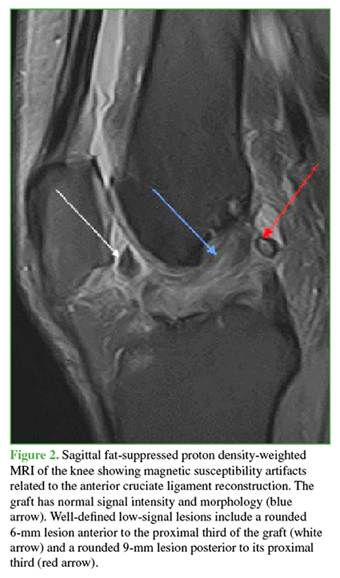

Coronal fat-suppressed proton density (PD)-weighted MRI of the knee showed magnetic susceptibility artifacts related to the ACL reconstruction. The graft had normal signal intensity and morphology. Well-defined low-signal lesions were visible, including a rounded 6-mm lesion anterior to the proximal third of the graft and another rounded 9-mm lesion posterior to its proximal third (Figure 2).

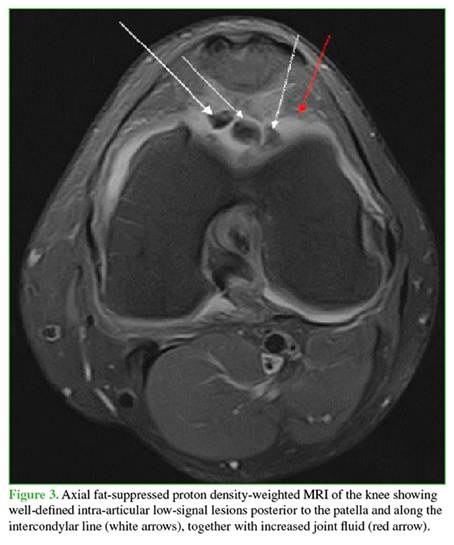

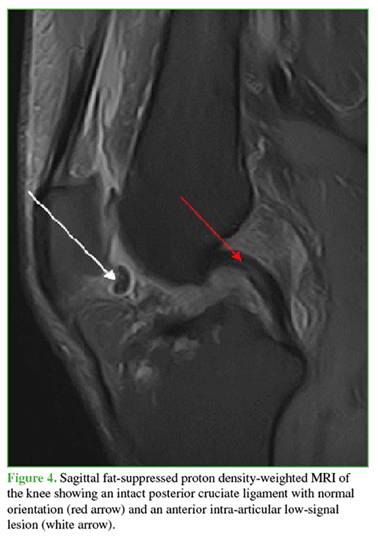

Axial images showed well-defined intra-articular low-signal lesions posterior to the patella and along the inter-condylar line, together with increased joint fluid (Figure 3). Sagittal images showed an intact posterior cruciate ligament with normal orientation and an anterior intra-articular low-signal lesion (Figure 4).

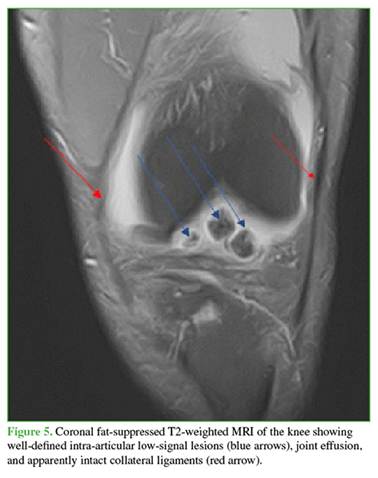

Coronal fat-suppressed T2-weighted MRI showed a well-defined intra-articular low-signal lesion, joint effusion, and apparently intact collateral ligaments (Figure 5).

Nine loose bodies were removed arthroscopically and submitted for histopathological examination. The report stated: “Synovium with a villous configuration, increased vascularity, areas of edema and vascular congestion, and active fibroblasts. No significant inflammatory infiltrate is seen. Mature cartilage with foci of mineralization. Diagnosis: synovium with reactive changes and morphological findings consistent with an intra-articular loose body.”

The patient returned to physical activity without complications, with full knee range of motion and no limitations or locking.

Vasudevan et al. describe synovial chondromatosis as a rare, benign condition characterized by metaplastic transformation of the synovial membrane, resulting in multiple intra-articular cartilaginous bodies.¹

The condition predominantly affects men aged 20–50 years and has a prevalence of 1 in 100,000 people.¹ Although considered nonaggressive and self-limiting, synovial chondromatosis can cause substantial joint damage if not adequately treated.¹ According to Yin-Tsi Palma and Gómez, MRI can identify complications associated with ACL repair and distinguish between complete and partial tears in cases of graft failure, helping guide treatment decisions.² It is also the imaging modality of choice for identifying anterior arthrofibrosis and helps rule out intra-articular collections and soft tissue infection after surgery.² Alvarez-Lopez et al. note that the many advantages of arthroscopy make it the most effective surgical approach for diagnosing and treating patients with intra-articular loose bodies.³ Diagnosis rests on clinical, imaging, and arthroscopic findings, and treatment involves several successive stages.³ Diagnosing synovial chondromatosis of the knee requires a thorough clinical assessment and diagnostic imaging.⁴ Plain radiographs may reveal intra-articular calcifications, although these are not always visible in the early stages.⁴ MRI is useful for detecting intra-articular loose bodies, assessing cartilage condition, and determining the extent of synovial involvement.⁴

Treatment of synovial osteochondromatosis is surgical and involves excision of the nodules, with or without total synovectomy. An open or arthroscopic approach is chosen according to fragment size, location, and the surgeon’s experience. Surgery should be performed early when the condition is clinically suspected to prevent progressive joint deterioration and even malignant transformation into chondrosarcoma.⁵ MRI findings vary with the degree of mineralization. The most common pattern, present in 77% of cases, consists of low-to-intermediate signal intensity on T1-weighted images and very high signal intensity on T2-weighted images, with low-signal calcifications.⁶ These MRI signal characteristics and the low attenuation of nonmineralized regions on CT reflect the high water content of cartilaginous lesions.⁶ In the early stages, bone scintigraphy is positive, while CT and MRI may help locate loose bodies.⁷

Synovial chondromatosis is characterized by the formation of metaplastic chondroid nodules in the subsynovial connective tissue of the synovial membrane lining joints, tendon sheaths, and bursae.⁸ These nodules often protrude into the joint cavity, become pedunculated, and detach to form loose bodies.⁸ They may continue to grow within the synovial fluid, which supplies their nutrients. The knee is the most frequently affected joint.⁸ Radiographically, the condition is characterized by calcified bodies associated with the joint cavity. Pathological examination shows characteristic gross findings: areas of synovial membrane with sessile or pedunculated nodules of varying sizes and loose bodies ranging from 1 mm to several centimeters in diameter.⁸ Comba et al. evaluated 10 patients who underwent hip arthroscopy between 2007 and 2011. None had other relevant medical history or disease at another site.⁹ Six were athletes, including three engaged in high-demand sports: two cyclists and one marathon runner. Diagnosis followed a protocol of clinical examination, radiographs, and MRI and was confirmed in all cases by subsequent histological examination. MRI showed findings characteristic of synovial chondromatosis in every case.⁹ MRI is also recommended for detecting synovial abnormalities, including nodules or thickening that may suggest the diagnosis.¹⁰ Nevertheless, the most effective diagnostic method is histopathological examination of a synovial biopsy, which reveals nodules of mature hyaline cartilage in the subsynovial layer of the synovial membrane, as well as mature cartilage nodules with central ossification and osteoblastic rimming.¹⁰

In our case, the patient’s history and clinical presentation prompted MRI to establish the diagnosis and guide management, as described by Yin-Tsi Palma and Gómez. Following the approach described by Alvarez-Lopez et al., we proceeded with surgical exploration and removal of nine small loose bodies of synovial origin (1 cm x 0.6 cm and 0.9 cm), which were submitted to the pathology department. The patient continued rehabilitation and returned to his usual activities without complications.

REFERENCES

1. Vasudevan R, Jayakaran H, Ashraf M, Balasubramanian N. Synovial chondromatosis of the knee joint: Management with arthroscopy-assisted “sac of pebbles” extraction and synovectomy. Cureus 2024;16(9):e69378. https://doi.org/10.7759/cureus.69378

2. Yin-Tsi Palma A, Gómez PMG. Imagen por resonancia magnética de las complicaciones postquirúrgicas asociadas a la reconstrucción del ligamento cruzado anterior. Revista Chilena de Radiología 2011;17(1):12-8. https://doi.org/10.4067/S0717-93082011000100004

3. Alvarez-Lopez A, Valdebenito Aceitón V, Soto Carrasco SR, Serrano Gonzalez D. Tratamiento artroscópico de pacientes con cuerpos libres articulares en la rodilla. Rev Inf Cient 2023;102. Available at: https://www.redalyc.org/journal/5517/551774301034/551774301034.pdf

4. Casares R, Burgos CLR, González ML. Condromatosis sinovial: los nódulos del cartílago. Acta Méd Grupo Ángeles 2025;23(1):69-71. https://doi.org/10.35366/119355

5. Guillén Botaya E, Pino Almero L, Molini Menchón MO, Silvestre Muñoz A, Moscardó-Navarro A, Minguez Rey MF. Osteocondromatosis sinovial de rodilla: una causa infrecuente de gonalgia en edad pediátrica. Arch Argent Pediatr 2020;118(1):e34-e38. Available at: https://www.sap.org.ar/docs/publicaciones/archivosarg/2020/v118n1a19.pdf

6. Murphey MD, Vidal JA, Fanburg-Smith JC, Gajewski DA. Imagen de la condromatosis sinovial con correlación radiológico-patológica. Radiografía 2007;27(5):1465-88. https://doi.org/10.1148/rg.275075116

7. Berenstein M, Raijman M, Weber B. Condromatosis sinovial de hombro. Tratamiento artroscópico. Rev Asoc Argent Ortop Traumatol 1993;58(3):268-71. Available at: https://www.aaot.org.ar/revista/1993_2002/1993/1993_3/580302. pdf?_gl=1*1hx4f0w*_ga*MjAwNzE4OTQ2NC4xNzg4NDA2MDMz*_ga_BFFNBSGNHH*czE3ODg0MDYwMzIk bzEkZzAkdDE3ODg0MDYwMzIkajYwJGwwJGgw

8. Berenstein M, Raijman M, Santini Araujo E, Hofman J. Patología sinovial. Diagnóstico y tratamiento artroscópico. Rev Asoc Argent Ortop Traumatol 1993;58(4):479-87. Available at: https://www.aaot.org.ar/revista/1993_2002/1993/1993_4/580411.pdf?_gl=1*yusub8*_ga*MjAwNzE4OTQ2NC4xNzg4NDA2MDMz*_ga_BF FNBSGNHH*czE3ODg0MDYwMzIkbzEkZzAkdDE3ODg0MDYwMzIkajYwJGwwJGgw

9. Comba F, Quinteros C, Martorell G, Buttaro M, Zanotti G, Piccaluga F. Condromatosis sinovial de cadera. Tratamiento artroscópico. Rev Asoc Argent Ortop Traumatol 2014;79(3):179-85. Available at: https://www.scielo.org.ar/pdf/raaot/v79n3/v79n3a07.pdf

10. Corinaldesi E. Condromatosis sinovial extraarticular de pie. Reporte de un caso y revisión bibliográfica. Rev Asoc Argent Ortop Traumatol 2016;81(Suppl):S40-S45. https://doi.org/10.15417/2525-1015.2016.81.660
